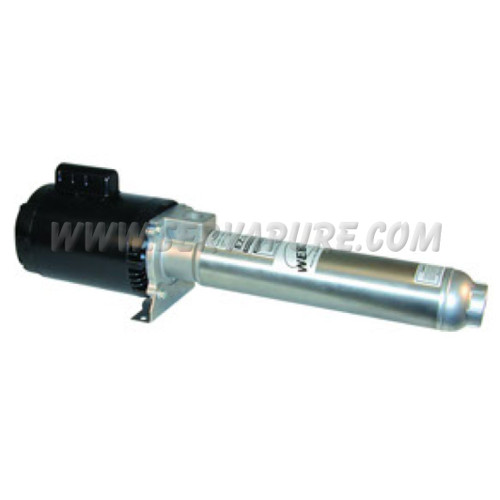

Webtrol H5B6S16 EZ Series Booster Pump, 316 SS

Brand: Webtrol

(No reviews yet) Write a Review
MSRP: $2,828.00
Your Price: $1,894.76
(You save $933.24 )
Quantity Price
1-1 $1894.76
2+ $1762.13
Adding to cart… The item has been added
Typically Ships in 2-3 Days
Technical Downloads
Webtrol H5B6S16 EZ Series Booster Pump

Webtrol has been building Booster Pumps for over 40 years for various industrial, commercial, and agricultural uses and has long been a leader in the Reverse Osmosis and Deionization Industry.

Webtrol's commitment to quality is defined in the constuction of of EZ series Booster Pump, through use of only quality materials and precision machining by journeyman machinists. Every pump us hand assembled and checked during each step, up to the final test, where each pump is checked for flow, pressure, power consumption, leaks vibration and noise.

Features/Benefits

• Rated for continous duty
• Available in both Stainless Steel and Cast Iron Fitted models
• Heavy duty stainless steel hex shaft with stainless steel coupling
• High strength, glass filled Delrin, polycarbonate or Noryl impellers precision machined for dimensional stability and effciency
• Injection molded polycarbonate or Noryl diffusers with molded in stainless stell wear rings at all critical points.
• Heavy wall stainless stell pump housing

Specifications

Webtrol EZ Series Booster Pumps are available from 5 to 35 GPM. Pressures to 500 PSI


Model Number H5B6S16
Suction 1" FNPT
Discharge 1" FNPT
HP 0.75 HP
Phase 1 Phase
Voltage 115
Mounting JM
Max Inlet Pressure Standard: 100 PSI
Optional: 250 PSI
Frequency 50/60 Hz
Speed 3450 RPM
Enclosure ODP (Open Drip Proof)


Construction

Inlet/Motor Bracket 316 SS
Discharge Housing 316 SS
Pump Housing 316 SS
Impellers Thermoplastic
Diffusers Thermoplastic
Wear Rings 316 SS
Shaft & Coupling 416 SS
Shaft Bearing Sleeve 316 SS
Mechanical Seal Carbon/Ceramic
O-Rings Viton


Applications

• Reverse Osmosis
• Deionization
• Car wash
• Washdown
• Industrial


Specifications

Webtrol EZ Series Booster Pumps are available from 5 to 35 GPM. Pressures to 500 PSI


Model NumberH5B6S16
Suction1" FNPT
Discharge1" FNPT
HP0.75 HP
Phase1 Phase
Voltage115
MountingJM
Max Inlet PressureStandard: 100 PSI
Optional: 250 PSI
Frequency50/60 Hz
Speed3450 RPM
EnclosureODP (Open Drip Proof)


Construction

Inlet/Motor Bracket316 SS
Discharge Housing316 SS
Pump Housing316 SS
ImpellersThermoplastic
DiffusersThermoplastic
Wear Rings316 SS
Shaft & Coupling416 SS
Shaft Bearing Sleeve316 SS
Mechanical SealCarbon/Ceramic
O-RingsViton

Weight:
25.00 LBS
