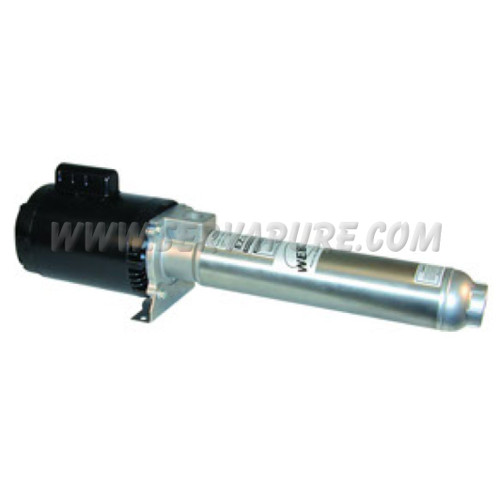

Webtrol G15B7S16T EZ Series Booster Pump, 316 SS

Webtrol has been building Booster Pumps for over 40 years for various industrial, commercial, and agricultural uses and has long been a leader in the Reverse Osmosis and Deionization Industry.

Webtrol's commitment to quality is defined in the constuction of of EZ series Booster Pump, through use of only quality materials and precision machining by journeyman machinists. Every pump us hand assembled and checked during each step, up to the final test, where each pump is checked for flow, pressure, power consumption, leaks vibration and noise.

Features/Benefits

• Available in both Stainless Steel and Cast Iron Fitted models
• Heavy duty stainless steel hex shaft with stainless steel coupling
• High strength, glass filled Delrin, polycarbonate or Noryl impellers precision machined for dimensional stability and effciency
• Injection molded polycarbonate or Noryl diffusers with molded in stainless stell wear rings at all critical points.
• Heavy wall stainless stell pump housing

Specifications

Webtrol EZ Series Booster Pumps are available from 5 to 35 GPM. Pressures to 500 PSI

Model Number	G15B7S16T
Suction	1" FNPT
Discharge	1" FNPT
HP	0.75 HP
Phase	1 Phase
Voltage	115
Mounting	JM
Max Inlet Pressure	Standard: 100 PSI Optional: 250 PSI
Frequency	50/60 Hz
Speed	3450 RPM
Enclosure	TEFC

Construction

Inlet/Motor Bracket	316 SS
Discharge Housing	316 SS
Pump Housing	316 SS
Impellers	Thermoplastic
Diffusers	Thermoplastic
Wear Rings	316 SS
Shaft & Coupling	316 SS
Shaft Bearing Sleeve	316 SS
Mechanical Seal	Carbon/Ceramic
O-Rings	Viton

Applications

• Reverse Osmosis
• Deionization
• Car wash
• Washdown
• Industrial
