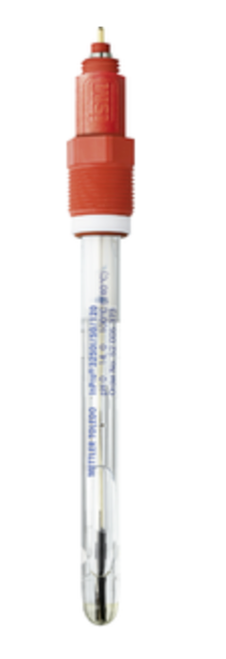

Thornton 52005384, InPro 4800i/SG/225 pH Sensor
pH Measurement in Harsh Environments.The InPro 4800i is a digital pH sensor designed for harsh environments. It offers a strong resistance to oxidizing media, solvents, and highly acidic or alkali solutions. This sensor provides predictive sensor-health diagnostics.
Performance in Harsh Conditions
This pH sensor is designed to perform accurately in demanding industrial environments, at high temperatures, and under high pressure.
Reduce Maintenance Costs
The PTFE annular junction, long diffusion path, and double electrolyte chamber combine to reduce cleaning and maintenance needs.
Advanced Predictive Diagnostics
This pH sensor has Intelligent Sensor Management (ISM) technology, offering predictive diagnostics to reduce maintenance and simplify calibration.
Specifications - pH Sensor InPro4800i/SG/120
| ISM (Digital) or Analog | ISM (Digital) |
| pH Sensing Technology | Highly Alkali Resistant Glass Membrane for Tough Conditions (HA) |
| pH Range | 0 – 14 |
| Reference System | Gel electrolyte, PTFE annular diaphragm, pressure compensated double chamber Ag/AgCl system |
| Operating Temperature (Fahrenheit) | 23 °F - 266 °F |
| Operating Temperature (Celsius) | -5 °C - 130 °C |
| Cable Connector | K8S |
| Process Connection | Pg 13.5 Thread |
| Sterilizable/Autoclavable | No |
| Sensor Length | 120 mm |
| Certificates & Approvals | CE METTLER TOLEDO Quality Certificate FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6 ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb PED |
| Operating Pressure (Bar) | 0 to 12 barg @ 130 °C |
| Model Family | InPro4800(i) |
| Temperature Sensor | Digital |
| Measurement Parameter | pH ORP/Redox |
| Shaft Material | Glass |
| Operating Pressure (PSI) | 0 to 174 psig @ 266 °F |
| Solution Ground/Redox Metal | Platinum |
| Refillable Electrolyte | No |
| Hazardous Area Approvals | Yes |
| Primary Media/Application | Chemical Processes |
| Hygienic/Biocompatibility Approvals | No |
| Material Number(s) | 52005383 |
