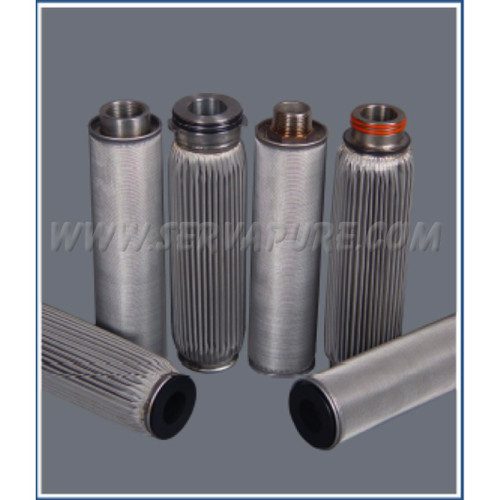

Stainless Steel Cylindrical Cartridge, 304 SS, 20 Inch Length
Features
- Made from 304 SS
- Actual length is 19.5"or 20"
- Cylindrical form makes for easy cleaning
- Cleanable and reusable in most applications
- Ultra sonic cleaning is recommended for pore sizes below 5 micron
- Micron ratings from 2 micron up to 840 micron
SC series filter cartridges have been designed to tackle the toughest of filtering applications. All materials of construction are 304 or 316 SS with a range of end cap configurations. Fabrication is by welding and crimping. No adhesives or epoxy are used for bonding. Grommet style flat gaskets are held in place mechanically without adhesives. You can choose the pleated style for extra surface area and extended life or the cylindrical form for easy cleaning. Pleated units rated 100 micron or finer have an underlying support layer of coarse stainless steel mesh to prevent pleat collapse. SC cartridges are the perfect choice for high temperature and high pressure applications and have excellent compatibility. They are cleanable and reusable and offered in retention ratings from 2 micron through 840 micron.
Applications
- Caustic Fluids - High pressure fluids
- Potable Water - Viscous Fluids
- Oils - Air and Gases
- Wastewater - Steam
- Plating Solutions - Chemical Solutions
- Corrosive Liquids - High Temperature Fluids
Dimensions Cylindrical- Length: 19.5" or 20"
- Outside Diameter: 2.75"
- Inside Diameter: 2.06"
- Flat Gasket OD: 2.25"
- Filtration Area: 0.55 ft2 per 10" cartridge
Dimensions Pleated
- Length: 19.5" or 20"
- Outside Diameter: 2.63"
- Inside Diameter: 2.06"
- Flat Gasket OD: 2.25"
- Filtration Area: 1.7 ft2 per 10" cartridge
Maximum Operating Parameters
- Differential Pressure Forward: 60 psid
- Differential Pressure Reverse: 2 psid
- Operating Temperature: 500°F
- Max. Operating Differential Pressure: 35 psid
Flow Rates
- Check data sheet on the next tab over
