Quantrol QFP5BH2-304, #2 Multi Bag Size Filter Housing, 600 GPM

Brand: Quantrol

(No reviews yet) Write a Review
MSRP: $23,417.38
Your Price: $16,392.20
(You save $7,025.18 )
Quantity Price
1-2 $16392.20
3+ $15408.67
Adding to cart… The item has been added
Call For Lead Time
Technical Downloads

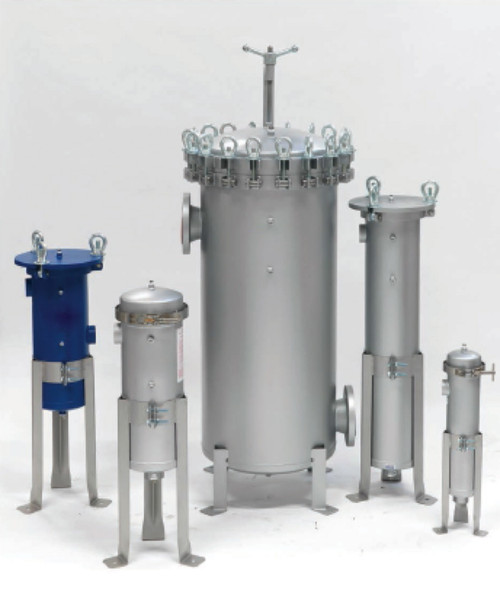

Quantrol QFP5BH2-304, #2 Multi Bag Size Filter Housing, 600 GPM

QFP Series Bag Filter Housings offer an economical solution to your commercial and industrial bag filtration applications. These heavy duty housings are designed for maximum durability. The swing bolt closure with eye hooks allows for quick and easy bag change outs.

Features:
-Swing bolt closure - single bag
- Adjustable Stainless steel leg assembly - Single bag
- Swing bolts with davit assist closure - Multi-round
- Heavy duty welded on mounting legs - Multi-round
- Stainless steel support baskets with 1/8" perforations
- Buna-n gasket
- 1/4" vent and gauge ports
- Drain port
- Housings rated at 150 psi, 300°F
- Standard Top Seal Gasket - 24021-SB-B
Technical Specifications
     - In/Out Size: 6" Flange
     - Max Pressure: 150 psi
     - Max Flow Rate: 600 GPM*
     - Bag Size: #2 Bag Filter
     - Bag Dimensions: 7" x 32"
     - Max Temperature: 300° F (Dependent upon bag filter material used)
     - # Of Bags: 5
     - Material of Construction: 304SS

* Flow rates are for guidelines only. Actual flow rates vary based on micron rating, fluid, viscosity and other factors

Weight:
70.00 LBS
