Quantrol QFP12X3-304, Multi-Round Housing, 270 GPM, 12 Cartridges

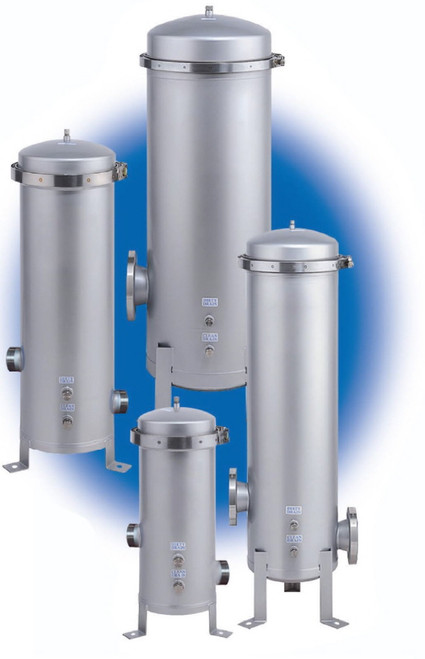

This housing accepts (12) 2.5" x 30" filters and has a 3" Flanged inlet and outlet connections. The QFP Series Band Clamp Housings are designed for Commercial and Industrial liquid filtration applications. These multi-cartridge filter housings are available in 4, 5, 7, 12, or 22 round configurations for flow rates up to 660 GPM. Universal seal cups and compression plates allow for the use of DOE, 222/flat or 222/fin style cartridges.
Features:
- Heavy Duty 304 Stainless Steel Construction
- External poly-coat finish
- Easy access band clamp closure
- Welded on mounting/supports legs
- Gauge/drain and vent ports standard
- Adjustable top plate with spring seal assemblies
- Buna O-Ring
Technical Specifications
- In/Out Size: 3" Flange
- Max Pressure: 150 psi
- Max GPM (depth cartridge): 180 GPM*
- Max GPM (Pleated cartridge): 270 GPM*
- Max Temperature: 250° F
- Max Pressure: 150 psi
- Max GPM (depth cartridge): 180 GPM*
- Max GPM (Pleated cartridge): 270 GPM*
- Max Temperature: 250° F
- # Of Cartridges: (12) 30" length
- Style of Cartridge: DOE, 222/Flat or 222/Fin
- Style of Cartridge: DOE, 222/Flat or 222/Fin
*
Flow rates are for guidelines only. Actual flow rates vary based on
micron rating, cartridge type, solids loading and other factors
