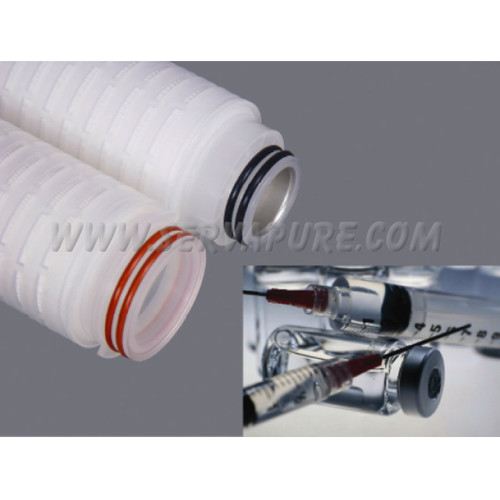

CPF Polypropylene Depth Cartridge, 40.0 Micron Rating, PPD40

PPD Grade Polypropylene Depth Media cartridges are designed to be used as pre-filters and non-sterilization grade Filters in the pharmaceutical industry. Special attention was given in the design of these cartridges to ensure long life as well as superior retention. PPD Grade cartridges are rated at 99.9% efficiencies at the rated pore size and have been flushed to remove any manufacturing debris and ensure particle free filtrate.

Maximum Operating Parameters

• Micron Rating: 40.0 Micron
• Maximum Operating Temperature^*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Dimensions (Cylindrical)

• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
• Surface Area: 7.2 ft² (0.67 m²) Per 10" length

Applications
Pre Filtration of:

• Diagnostics                      • Medications
• LVp's & SVP's                • Biologicals
• Water
