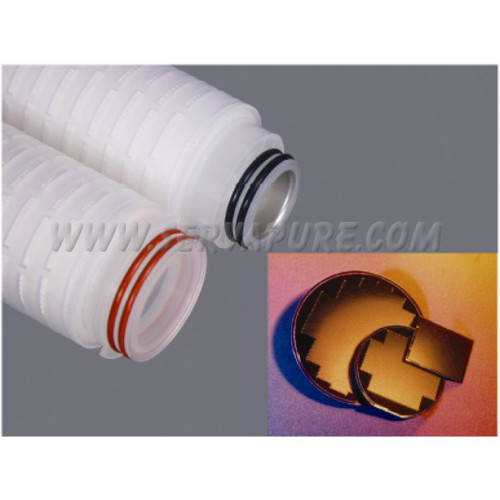

CPF Polypropylene Depth Cartridge, 40 Micron Rating, EPD40, Electronics Grade

EPD cartridges are designed to meet the special needs of the electronics and high purity chemical industries. Raw materials of construction were specifically chosen on the basis of their ability to be chemically compatible plus produce minimal extractables when exposed to typical process chemicals and solvents. Each cartridge module is pulse, power flushed until the rinse effluent reaches 17+ megohm-cm and less than 3 ppb TOC. Each cartridge module is also individually tested to ensure it is integral. EPD cartridges are rated at 99.9% efficiencies at the rate pore size.

Maximum Operating Parameters

• Micron Rating: 40 Micron
• Maximum Operating Temperature^*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Dimensions (Cylindrical)

• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
• Surface Area: 7.2 ft² (0.67 m²) Per 10" length

Applications
Filtration of:

• UP DI Water                     • Chemicals
• Acids & Bases                   • Solvents
• Plating Solutions                • Process Water

• Etch Baths
