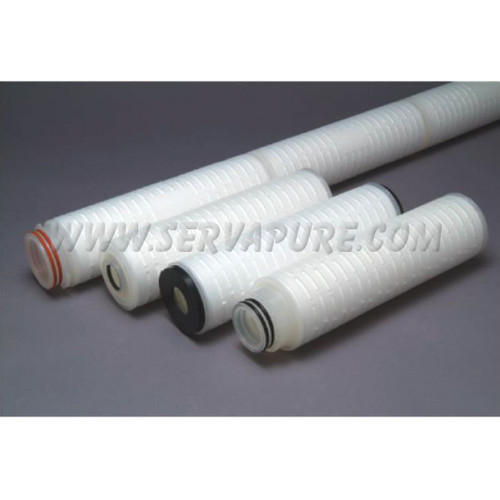

CPF Polyethersulfone Membrane Cartridge, 0.45 Micron Rating, WPS-40, Water Grade

WPS water grade Polyethersulfone cartridges are designed for purified water use, wherever a cost effective membrane filter is required. WPS cartridges are flushed with 17+ megohm-cm water to remove potential extraneous manufacturing debris. Priced below general purpose cartridges. WPS cartridges are still manufactured with the same careful attention to both quality and performance.

Maximum Operating Parameters

• Micron Rating: 0.45 Micron
• Maximum Operating Temperature^*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Construction Materials

• Filtration Media: Polyethersulfone

• Filtration Media Support: Polypropylene
• End Caps: Polypropylene
• Center Core: Polypropylene
• Outer Support Cage: Polypropylene

• Sealing Method: Thermal Bonding

Dimensions (Cylindrical)

• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
• Surface Area: 7.0 ft² (0.65 m²) Per 10" length

Applications
Final Filtration of:

• Purified Water
