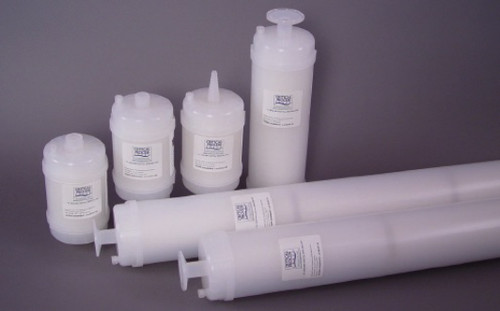

CPF Polyethersulfone Membrane Capsule, 1.2 Micron Rating, CPGPS1-2, General Grade, 4/Pack

EPS capsules are hydrophilic and manufactured with the highest quality asymmetric polyethersulfone membrane. PES membranes exhibit excellent flow rates with high efficiency retention.

GPS capsule filters are used for removal of particulates from process water, and for final filtration of DI water, inks, dyes and specialty chemicals.

Polyethersulfone is suited for high flow rate filtration of product streams that contain high contaminant loads and have elements that can adsorb to the media, such as preservatives. The lower binding characteristics of PES membrane make it a good choice for inks, dyes, specialty chemicals and service fluids.


Maximum Operating Parameters

• Micron Rating: 1.2 Micron
• Maximum Operating Temperature^*: 110°F (43°C) at 30 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Capsule Filters - Filtration Area

- 2" Capsule Length: 1.0 ft2 PES membrane
- 5" Capsule Length: 3.0 ft2 PES membrane
- 10" Capsule Length: 7.0 ft2 PES membrane
- 20" Capsule Length: 14.0 ft2 PES membrane
- 30" Capsule Length: 21.0 ft2 PES membrane


Applications

• Process Water        • Inks & Dyes
• DI Water                • Specialty Chemicals
