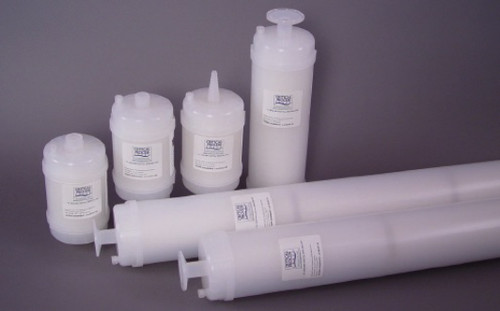

CPF Polyethersulfone Membrane Capsule, 0.65 Micron Rating, CPFPS-60, 4/Pack

FPS capsules are hydrophilic and manufactured with the highest quality asymmetric polyethersulfone membrane. PES membranes exhibit excellent flow rates with precise retention ratings.

FPS capsule filters remove organic contaminants from beverages and process liquids. They are used for final filtration of wine beer, bottled water and aseptically packaged products like juices. To protect processes, FPS capsules see service in removing organic and other contaminants from process water and clean-in-place solutions used in piping and other systems.

Polyethersulfone is particularly suited for the filtration of products that contain elements that can adsorb to the media, such as flavor elements and proteins. The lower binding characteristics of PES avoid adsorption and make it a good choice for filtration of beer and wine.

Maximum Operating Parameters

• Micron Rating: 0.65 Micron
• Maximum Operating Temperature^*: 110°F (43°C) at 30 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Capsule Filters - Filtration Area

- 2" Capsule Length: 1.0 ft2 PES membrane
- 5" Capsule Length: 3.0 ft2 PES membrane
- 10" Capsule Length: 7.0 ft2 PES membrane
- 20" Capsule Length: 14.0 ft2 PES membrane
- 30" Capsule Length: 21.0 ft2 PES membrane


Applications
Final Filtration of:

• Wine                      • Process Water
• Beer                       • Clean-In-Place Solutions
• Juices                     • Aseptically Packaged Liquids
