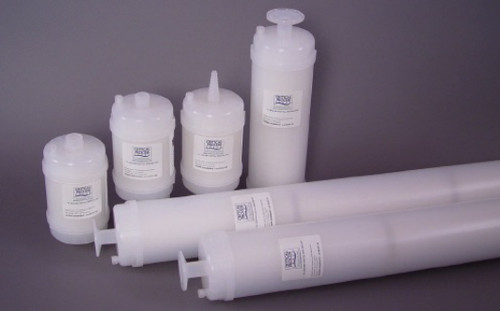

CPF Polyethersulfone Membrane Capsule, 0.22 Micron Rating, CPPPS-20, 4/Pack

- Sold in packs of 4 only

PPS capsules are hydrophilic and manufactured with the highest quality asymmetric polyethersulfone membrane, double layered for extra security. PES membranes exhibit excellent flow rates with high throughput. PPS capsules are used for sterilizing filtration, the most critical applications in the pharmaceutical industry. PPS capsule elements are 100% integrity tested during production.

Polyethersulfone is particularly suited for the filtration of products that contain elements that can adsorb to the media, such as preservatives and proteins. The lower binding characteristics of PES make it a good choice for filtration of valuable protein solutions such as vaccines and biologicals as well as opthalmic solutions.

Maximum Operating Parameters

• Micron Rating: 0.22Micron
• Maximum Operating Temperature^*: 110°F (43°C) at 30 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Capsule Filters - Filtration Area

- 2" Capsule Length: 1.0 ft2 PES membrane
- 5" Capsule Length: 3.0 ft2 PES membrane
- 10" Capsule Length: 7.0 ft2 PES membrane
- 20" Capsule Length: 14.0 ft2 PES membrane
- 30" Capsule Length: 21.0 ft2 PES membrane


Applications
Final Filtration of:

• Diagnostics                      • Vaccines
• LVp's & SVP's                • Biologicals
• WFI Water                       • Medications
