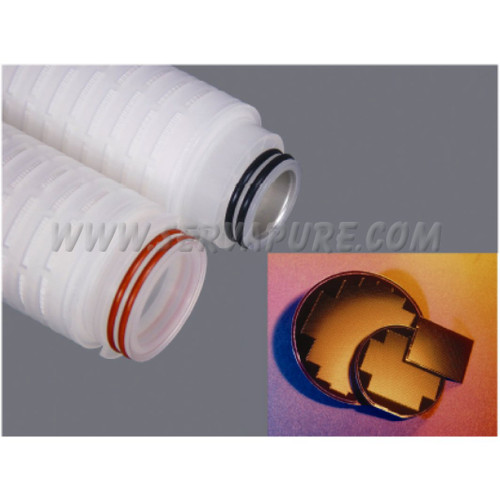

CPF PTFE Membrane Cartridge, 1.0 Micron Rating, ETM1-0, Electronic Grade

ETM cartridges are designed to meet the special needs of the electronics and high purity chemical industries. Teflon membrane cartridges are resistant to virtually all chemicals. Because of Teflon;s hydrophobic nature it can also be used to filter process gases. Pre-wet Teflon is available for liquids with surface tension too high to wet out standard Teflon membrane. This membrane will also handle elevated process temperatures in compatible fluids. To minimize extractables, each cartridge module is pulse, power flushed until the rinse effluent reaches 17+ Megohm-cm and less than 3 ppb TOC. Each cartridge module is also individually tested for integrity.

Maximum Operating Parameters

• Micron Rating: 1.0 Micron

• Operating Temp: 180°F (82°C) at 10 psid (0.69 bar) in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C

• Recommended Change Out Pressure: 35 paid (2.4 bar)

Dimensions (Cylindrical)

• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
• Surface Area: 7.0 ft² (0.65 m²) Per 10" length

Applications
Final Filtration of:

• Compressed Air                      • Pressurized Gases
• Chemicals                               • Tank Ventilation
• Solvents
