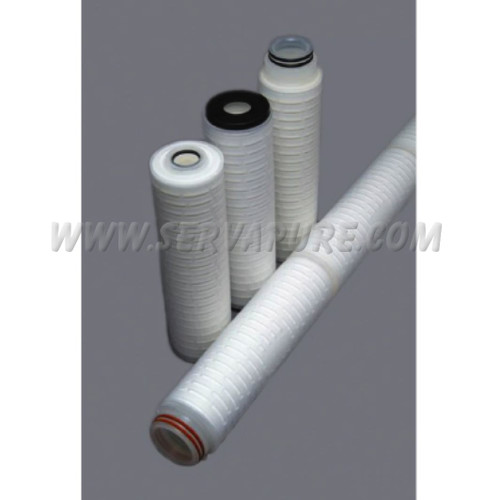

Nylon Membrane Cartridge, 0.65 Micron Rating, GNM-60, General Grade

GNM grade Nylon Media cartridges are designed for general purpose use wherever a cost effective pleated membrane filter is required. Designed to hold the maximum amount of filter media that can be completely and effectively utilized in a cartridge, GNM filters lower the cost of filtration. GNM cartridges are flushed with 17+ megohm-cm water to remove potential extraneous manufacturing debris. These cartridge modules are also individually tested for integrity. Priced below special purpose cartridges, GNM cartridges are still manufactured with the same careful attention to both quality and performance.

Maximum Operating Parameters

• Micron Rating: 0.65 Micron
• Maximum Operating Temperature^*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Dimensions

• Length: 5 to 40" (12.7 to 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
• Surface Area: 7.0 ft² (0.65 m²) Per 10" length

Applications
Final Filtration of:

• Process Water                     • Beverages
• DI water                              • Bottled Water
• Chemicals                           • Solvents
