Myron L 900M-3C Series Monitor/Controller with 3 Relays, 2 Alarms and 4-20 mA Output

Brand: Myron L

(No reviews yet) Write a Review
MSRP: $2,813.00
Your Price: $2,531.70
(You save $281.30 )
Adding to cart… The item has been added
Call For Stock Level
Technical Downloads

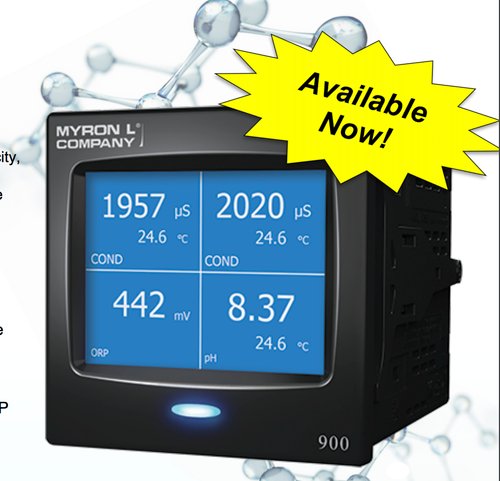

Myron L 900M-3C Series Monitor/Controller with 3 Relays, 2 Alarms and 4-20 mA Output

Myron L Company's new 900 Series Multi-Parameter Monitor/Controllers combine accuracy, reliability, simplicity, and flexibility. The user intuitive graphical user interface allows easy and complete programmability of the instrument all from the LCD touch screen. These highly accurate instruments have the ability for simultaneous monitoring and controlling of multiple inputs/outputs.

Parameters
- Conductivity     - Resistivity
- Salinity             - TDS
- pH                     - ORP
- Temperature      - mV Input
- Flow                  - % Rejection
- 4-20 / 0-20 mA Multi-Parameter input

High Performance Features
- Flexibility to meet any application
- Mobile device style GUI and OS
- Large, sharp, color touch screen (3.5" QVGA LCD)
- Customizable Screen Layout
- Quick, easy installation
- Simultaneous monitoring of multiple sensors including up to 7 inputs:
     - 2- Conductivity/resistivity/TDS/Salinity
     - 1 - Pre-amplified ph/ORP
     - 1 - BNC pH/ORP/mV
     - 1 - Flow Rate and Volume totalizer, Pulse Counter/Frequency Counter
     - 1 - Additional RTD Temperature Input
- % Rejection
- 1/4 DIN Size Chassis
- Password Security Features
- Up to 3 Alarm/Control Relays, Configurable
- 0-10V Recorder Output, Fully Scalable
- 4-20/0-20 mA Isolated Output, Fully Scalable
- Up to 2 remote alarm outputs
- Flow switch input
- Digital calibration (without removing front panel or adjusting potentiometers)
- 3 Temperature compensation standards for greatest accuracy in diverse applications (KCl, NaCl and 442 Natural Water)
- User Adjustable Temperature Compensation
Specifications
- Conductivity Range: 0 uS - 200 mS
- TDS Range: 0 ppm - 200 ppt
- Resistivity Range: 10 Kohm to 40 MegOhm
- Salinity Range: 0 ppm - 200 ppt
- pH Range: 0 - 14 pH
- ORP/mV IN: +/- 2000 mV
- Temperature Range: 0 - 250 °C

Housing Specifications
- Enclosure Material: PC/ABS
- Enclosure Rating: IP65/NEMA 4X (Front/face only), IP20 (Housing)
- Dimensions (housing, without connectors) 1/4 DIN, 3.78" H x 3.78" W x 4.85" D

Display/User Interface
- Display: 3.5" Color LCD, Hi Brightness, TFT
- Status LED: Tri-Color
- User Interface: Resistive Touch Screen
Weight:
2.00 LBS
