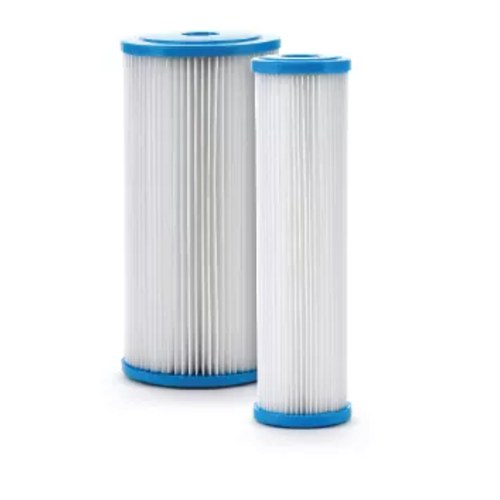

Hydronix SPC-25-4001, Sediment Pleated Cartridge, 2.5" x 40", 1 Micron
Hydronix SPC Series polyester pleated cartridges are manufactured from durable polyester to provide you with a superior pleated cartridge that is washable and reusable. The polyester media is pleated around a Polypropylene core for added strength and the ends are immersed in a thermosetting Vinyl Plastisol which fuses the three components together forming a unified end cap and gasket. The cartridge are bacteria and chemical resistant and provide great dirt holding capacity to extend the time between cartridge changes outs.
Features:
- Graded density for high dirt holding capacity
- Manufactured from 100% pure polypropylene
- NSF Standard 42, 61 and 372 certified
- Made with FDA CFR 21 Approved Materials
Applications
- Electroplating, etching and image developing processes in PCB industry
- Pre-filter for DI and RO Water filtration systems
- Pre-filtration for low viscosity chemicals
- Pre-filtration for manufacturing and water recycling
- Micron Rating: 1 microns
- Dimensions: 2.5" x 40"
- Box Dimensions: 13" x 11" x 41"
- Box Qty: 20
- Weight: 26 Pounds
Materials Of Construction
- Filter Media: Non Woven Polyester
- End Caps: Vinyl Plastisol
- Core: Polypropylene
Operational Data
- Temperature Range: 40°F to 125°F
- Max Flow: See Spec Sheet
