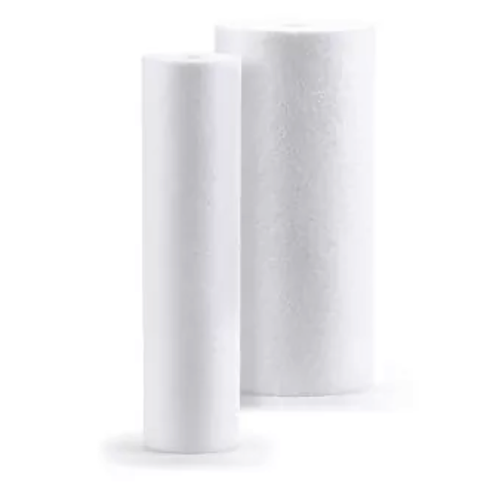

Hydronix SDC-25-3001, Sediment Depth Cartridge, 2.5" x 30", 1 Micron, Case of 20
SOLD AS CASE OF 20 ONLY
The Hydronix Series 2.5" diameter SDC cartridge's coreless design is an economical solution to pre-filtration for many applications. They are used widely as pre-filtration for RO systems and post-filtration for GAC filters. They are also used in applications such as ice machines, film processing, beverage, coffee, analytical, wineries and many others.
Features:
- Graded density for high dirt holding capacity
- Manufactured from 100% pure polypropylene
- NSF Standard 42, 61 and 372 certified
- Made with FDA CFR 21 Approved Materials
Applications
- Electroplating, etching and image developing processes in PCB industry
- Pre-filter for DI and RO Water filtration systems
- Pre-filtration for low viscosity chemicals
- Pre-filtration for manufacturing and water recycling
- Micron Rating: 1 microns
- Dimensions: 2.5" x 30"
- Box Dimensions: 13" x 11" x 31"
- Box Qty: 20
- Weight: 18 Pounds
Materials Of Construction
- Filter Media: Polypropylene
Recommended Changeout
- Differential Pressure: 21.75 PSID
Operational Data
- Max Operating Temperature: 145°F
- Max Pressure Drop: 69°F @ 46.4 psi
- Temperature Range: 40°F to 145°F
- Max Flow: 2-8 gpm (depending on micron rating)
