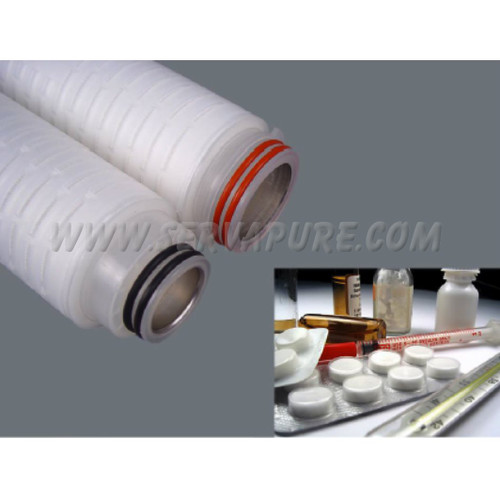

High Capacity Polyerthersulfone Membrane Cartridge, 0.50 Micron Rating
GCWPS Membranes Filter cartridges are designed for general service wherever a membrane filter is required. Designed to hold the maximum amount of filter media that can be effectively used in a cartridge, GCWPS filters lower the cost of filtration.
Applications
Filtration of:
Filtration of:
• Process Water • Chemicals
• DI Water • Cosmetics
• Inks & Dyes
Maximum Operating Parameters
• Micron Rating: 0.50 Micron
• Maximum Operating Temperature*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)
• Micron Rating: 0.50 Micron
• Maximum Operating Temperature*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)
Construction Materials
• Filtration Media: Dual Layered: High Capacity Polyethersulfone Membrane (single or dual layer)
• Filtration Media Support: Polypropylene
• End Caps: Polypropylene
• Center Core: Polypropylene
• Outer Support Cage: Polypropylene
• Filtration Media: Dual Layered: High Capacity Polyethersulfone Membrane (single or dual layer)
• Filtration Media Support: Polypropylene
• End Caps: Polypropylene
• Center Core: Polypropylene
• Outer Support Cage: Polypropylene
• Sealing Method: Thermal Bonding
Dimensions
• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
• Surface Area: 6.7 ft2 (0.65 m2) Per 10" length
5.2 ft2 (0.65 m2) Per 10" length
