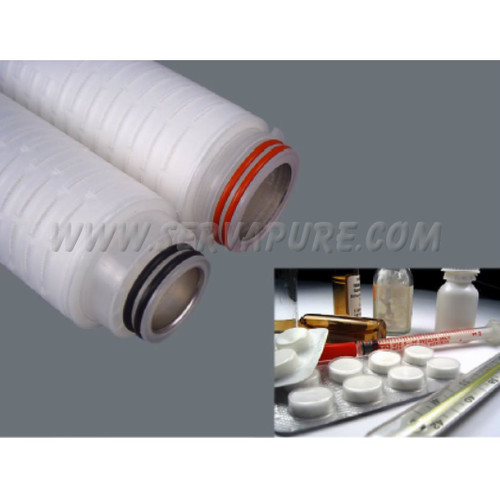

High Capacity Polyerthersulfone Membrane Cartridge, 0.50 Micron Rating, Biopharmaceutical

BCWPS Filters are hydrophilic and manufactured with single-layer or dual-layer high capacity polyethersulfone (PES) membrane. The multiple layer options provide a wide range of retention characteristics. The proprietary membrane has high contaminant holding capacity, excellent retention characteristics and high flow rates. BCWPS cartridge filters are used for critical particle reduction and prefiltration applications in the bio-pharmaceutical industry.

High capacity PES is particularly suited for the filtration of products that contain preservatives and proteins that can adsorb to the media. The low binding characteristics of PES make it a good choice for filtration of valuable protein solutions such as vaccines and other bio-pharmaceuticals.

Applications
Filtration of:

• SVPs                               • Buffers and Feedstocks
• LVPs                               • WFI Water
• Solvents                          • Vaccines

Maximum Operating Parameters

• Micron Rating: 0.50 Micron
• Maximum Operating Temperature^*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Dimensions

• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
• Surface Area: 6.7 ft² (0.65 m²) Per 10" length

                           5.2 ft² (0.65 m²) Per 10" length
