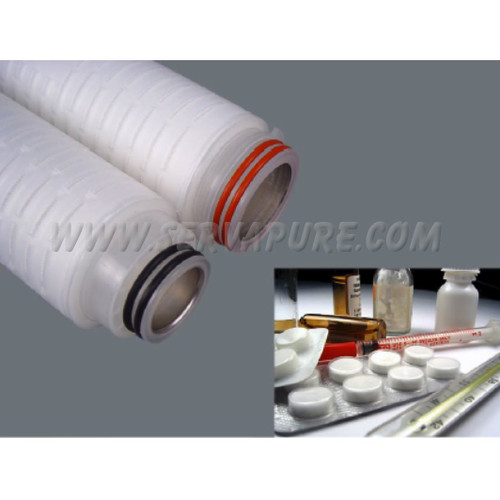

High Capacity Polyerthersulfone Membrane Cartridge, 0.22 Micron Rating, Food and Beverage

FCWPS Filter Cartridges have been designed to comply with all FDA requirements for the food industry. FCWPS cartridges are hydrophilic and manufactured with high capacity polyethersulfone (PES) membrane. They are used to reduce particle contamination as part of the critical clarification and filling processes for wine, beer, bottled water and aseptically packaged products like juices. To protect system quality, FCWPS filters also see service in removing contaminants from process water and clean in place solutions used in piping and other systems.

Applications
Filtration of:

• Wine                              • Juices
• Beer                               • Soft Drinks
• Bottled Water                 • Clean-In Place Solutions

• Process Water



Maximum Operating Parameters

• Micron Rating: 0.22 Micron
• Maximum Operating Temperature^*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Dimensions

• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
• Surface Area: 6.7 ft² (0.65 m²) Per 10" length

                           5.2 ft² (0.65 m²) Per 10" length
