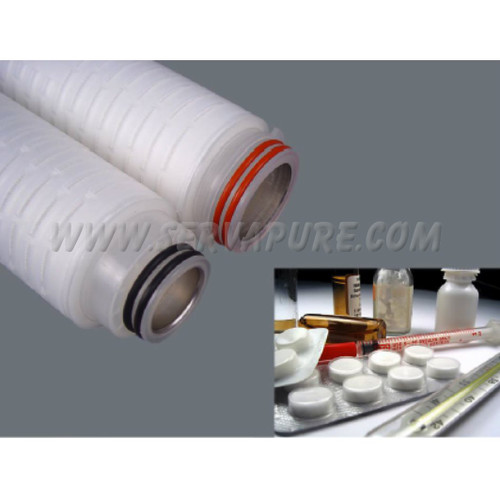

High Capacity Hydrophobic PVDF Membrane Cartridge, 1.0 Micron Rating, General Grade
GPVWB cartridges are designed for general purpose use wherever a hydrophobic membrane filter is required. These cartridges are designed for use in the filtration of solvents, non-aqueous solutions and as compressed gas and vent filters.
These cartridges are found in the manufacturing processes of firms in multiple industries that require high quality, cost effective filter technologies. The cartridge surface area, filter core design, pleat configuration, and pleat packing density have been optimized to provide increased cartridge life resulting in lower filtration operation costs.
Applications
Filtration of:
Filtration of:
• Compressed Air • Process Gas
• Solvent Filtration • Tank Ventilation
• Non-Aqueous Solutions
Maximum Operating Parameters
• Micron Rating: 1.0 Micron
• Maximum Operating Temperature*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)
• Micron Rating: 1.0 Micron
• Maximum Operating Temperature*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)
Construction Materials
• Filtration Media: Dual Layered: Hydrophobic PVDF Membrane (Absolute rated)
• Filtration Media Support: Polypropylene
• End Caps: Polypropylene
• Center Core: Polypropylene
• Outer Support Cage: Polypropylene
• Filtration Media: Dual Layered: Hydrophobic PVDF Membrane (Absolute rated)
• Filtration Media Support: Polypropylene
• End Caps: Polypropylene
• Center Core: Polypropylene
• Outer Support Cage: Polypropylene
• Sealing Method: Thermal Bonding
Dimensions
• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
• Filtration Area: 6.0 ft2 per 10" length
