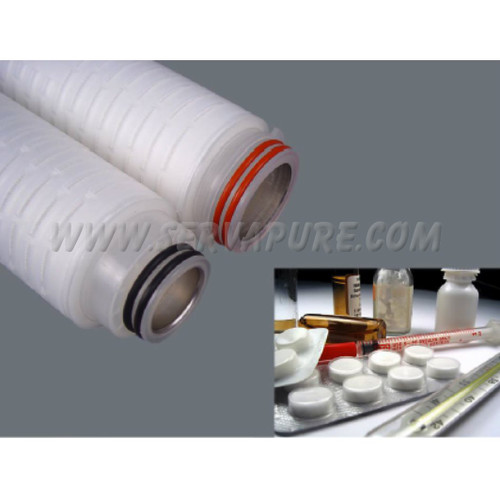

CPF High Capacity Hydrophobic PVDF Membrane Cartridge, 0.65 Micron Rating, Food and Beverage

FPVWB cartridges are hydrophobic and manufactured with high capacity PVDF membrane. The proprietary membrane casting process creates a thick membrane with high contaminant holding capacity, excellent retention characteristics and high flow rates. PVWB membrane provides excellent throughput and is available in multiple retention ratings to help protect product quality and assure consumer safety.

Application for FPVWB filters include bioburden control in non-aqueous liquids, compressed air filtration, process gas filtration and as tank vent filters to protect the integrity of products as they are stored in tanks.

Applications
Filtration of:

• Compressed Air                               • Process Gas
• Solvent Filtration                             • Tank Ventilation
• Non-Aqueous Solutions



Maximum Operating Parameters

• Micron Rating: 0.65 Micron
• Maximum Operating Temperature^*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Dimensions

• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal

• Filtration Area: 6.0 ft2 per 10" length
