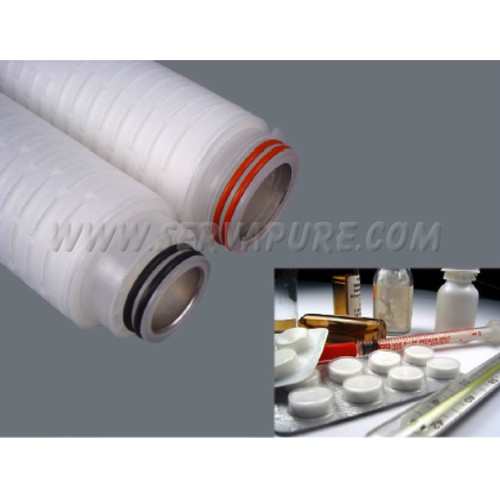

High Capacity Hydrophobic PVDF Membrane Cartridge, 0.45 Micron Rating, Biopharmaceutical Grade
BPVWB Membrane Filter Cartridges are manufactured with high capacity hydrophobic PVDF membrane material. The high capacity, excellent throughput and high efficiency particle retention. These cartridges are designed for compressed gas filtration and vent filtration. Representative cartridge modules from each manufacturing lot are tested before lot release from manufacturing.
The cartridge surface area, filter core design, pleat configuration, and pleat packing density have been optimized to provide increased cartridge life and lower filtration operating costs. Rugged construction ensures repeatable steaming.
Applications
Filtration of:
Filtration of:
• Compressed Air • Pressurized Gases
• Fermentation Air • Tank Ventilation
• Solvents • Non-Aqueous Solutions
Maximum Operating Parameters
• Micron Rating: 0.45 Micron
• Maximum Operating Temperature*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)
• Micron Rating: 0.45 Micron
• Maximum Operating Temperature*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)
Construction Materials
• Filtration Media: Dual Layered: Hydrophobic PVDF Membrane (Absolute rated)
• Filtration Media Support: Polypropylene
• End Caps: Polypropylene
• Center Core: Polypropylene
• Outer Support Cage: Polypropylene
• Filtration Media: Dual Layered: Hydrophobic PVDF Membrane (Absolute rated)
• Filtration Media Support: Polypropylene
• End Caps: Polypropylene
• Center Core: Polypropylene
• Outer Support Cage: Polypropylene
• Sealing Method: Thermal Bonding
Dimensions
• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
• Filtration Area: 6.0 ft2 per 10" length
