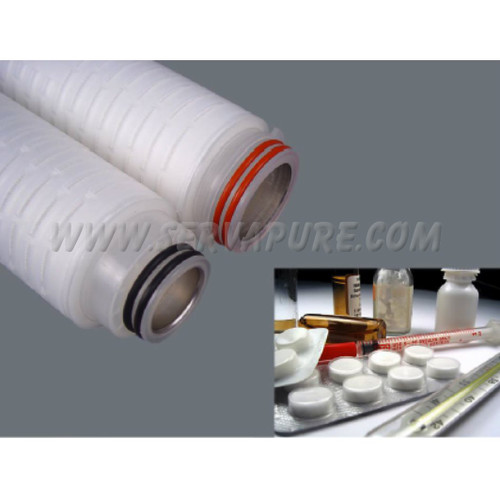

High Capacity Hydrophilic PVDF Membrane Cartridge, 1.0 Micron Rating, General Grade
GPVWL filters are made using high capacity PVDF membrane. High capacity PVDF membrane exhibits high dirt holding capacity, excellent throughput and high efficiency retention. GPVWL cartridges are used for critical prefiltration applications in the processing of a wide range of liquids.
Applications
Filtration of:
Filtration of:
• Process Water • Chemicals
• DI Water • Cosmetics
• Inks & Dyes
Maximum Operating Parameters
• Micron Rating: 0.85 Micron
• Maximum Operating Temperature*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)
• Micron Rating: 0.85 Micron
• Maximum Operating Temperature*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)
Construction Materials
• Filtration Media: Dual Layered: PVDF Membrane (Absolute rated)
• Filtration Media Support: Polypropylene
• End Caps: Polypropylene
• Center Core: Polypropylene
• Outer Support Cage: Polypropylene
• Filtration Media: Dual Layered: PVDF Membrane (Absolute rated)
• Filtration Media Support: Polypropylene
• End Caps: Polypropylene
• Center Core: Polypropylene
• Outer Support Cage: Polypropylene
• Sealing Method: Thermal Bonding
Dimensions
• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
