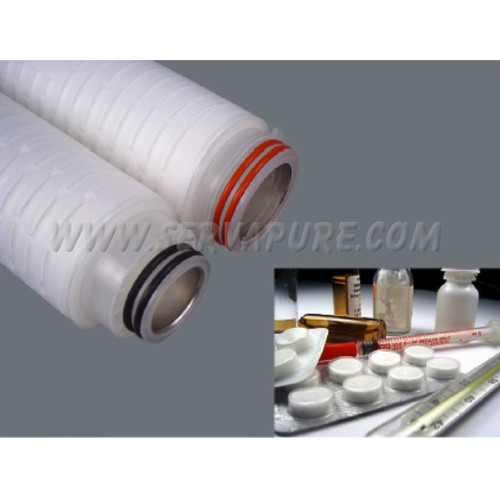

CPF High Capacity Hydrophilic PVDF Membrane Cartridge, 0.85 Micron Rating, Food and Beverage

FPVWL cartridges are hydrophilic and manufactured with high capacity PVDF membrane. The proprietary membrane casting process create a thick membrane with high contaminant holding capacity, excellent retention characteristics, high flow rated and low protein binding. PVWL membrane provides excellent throughput and is available in multiple retention ratings to help protect product quality and assure consumer safety.

PVDF is particularly suited for the filtration of products containing elements that can absorb to the media, such as preservatives and proteins. The very low binding nature of PVDF makes it a good choice for filtration beer and wine

Applications
Filtration of:

• Wine                               • Juices
• Beer                               • Soft Drinks
• Bottled Water



Maximum Operating Parameters

• Micron Rating: 0.85 Micron
• Maximum Operating Temperature^*: 180°F (82°C) at 10 psid in water
• Forward Differential Pressure: 50 psi (3.4 bar) at 20°C
• Reverse Differential Pressure: 40 psi (2.7 bar) at 20°C
• Recommended Changeout Pressure: 35 psid (2.4 psid)

Dimensions

• Length: 5 to 40" (12.7 101.6 cm) nominal
• Outside Diameter: 2.75" (7.0 cm) nominal
