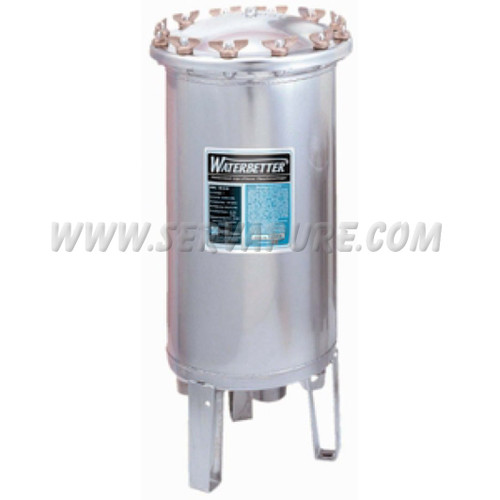

Harmsco WB 90SC-2, WaterBetter® Filter Housing
Features
- Patented Up-flow design
- Electropolished 304 stainless steel housing
- Fail safe closure system
- Three sizes for greater media surface area
- CPVC standpipe (standard) - stainless steel optional
- Simple alternative to complex multiple cartridge housings
- Extensive choice of cartridge micron ratings and media, including carbon block
- Reduced installation cost
Applications
- Commercial/Residential Drinking Water - Industrial Waste Water Treatment
- Cooling Tower Filtration - Reverse Osmosis Pre-Filtration
- Desalination Pre-Filtration (Coated Options) - Ground water remidiation
- Surface Water Treatment Rule (SWTR) LT2 - Utility Water
- P.O.E. for household - Ground water under direct influence (GUDI)
- Holds (1) Cartridge
| Filter Model | WB 90SC-2 |
| Height | 29-3/8" |
| Drain | 4-1/2" |
| Diameter | 13" |
| Inlet Height | 4-1/4" |
| Outlet Height | 3-7/8" |
| Pipe Size NPT | 2" |
| Drain Size NPT | 1" |
| Floor Space | 15" x 15" |
| Service Height | 51" |
| Shipping Weight | 51 lbs. |
| Recommended Flow Rate | Up To 70 GPM |
| Max. Flow Rate | Up To 100 GPM |
- Electropolished 304 stainless steel finish
- Standpipe - CPVC
- Wing nuts - brass
- Rim gaskets - EPDM (Buna-N, Viton available)
- BSTP optional
- Pressure - up to 150 psi (10 bar) max
- Temperature - up to 140°F (60° C) max. Up to 200°F (93°C) with optional stainless steel standpipe and high temperature cartridges installed.
