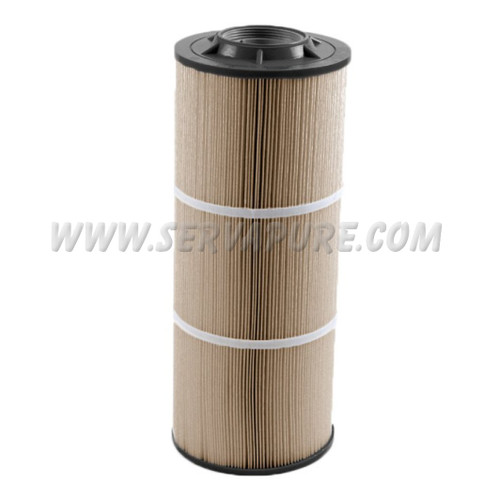

Harmsco HC/90-10HT, 10 Micron Premium Hurricane High Temperature Cartridge
Designed for Hurricane® and WaterBetter® Filter housings
- High Flow capability
- Lower overall operating cost
- Two types of pleated media for flexibility
- Reduced waste disposal
- Longer filter runs for fewer change-outs
- Increased contaminant removal
- Operator friendly
- Two temperature ratings to choose from: 200°F (93°C) and 250°F (121°C)
Features
- Fewer cartridges for fewer change-outs and lower maintenance cost
- Pleated filter media provides higher flow rates and lower initial pressure drop
- Pleated surface area provides higher loading capacity for longer filter life and increased paricle removal
- Aqueous and oil based fluid applications
- High surface area (40, 90 and 170 sq. ft.) in single cartridge design
Applications
- Hot Water Loops - Solvents
- Boiler Make-Up Water - Distillate Fuel
- Petrochemical - Fuel Oil
- Lubricating Oils - Hydraulic Fluids
- Cutting Fluids - Bio Fuels
Polyester-Plus™ - rated up to 200°F (93°C)
| Micron Rating | 10 Microns |
| Media (sq ft) | 90 |
| Rec. Flow Rate (GPM) | 70 |
| pH | 6.5 to 9.5 |
| Change Out Pressure Drop | 25 PSI (1.7 bar) |
| O-Rings and Sealing Grommet | Buna-N Standard, Viton is optional |
| Filter Dimension | 7-3/4" OD x 19-1/2" H |
| Filter Media | Polyester-Plus™ |
| End Caps | Injection Molded |
| Center Core | Powder coated perforated metal |
| Temperature | 200°F (93°C)** |
