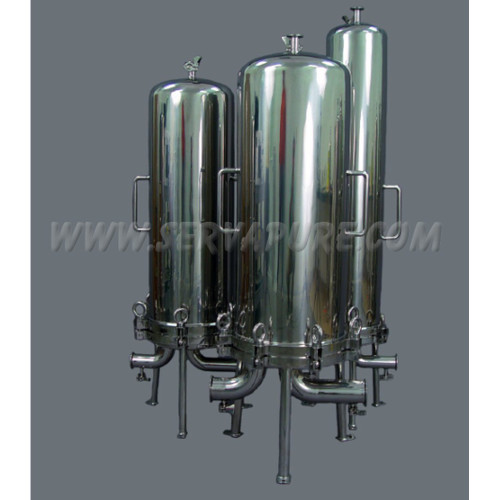

CSH34, 3 Round 40'' Multi Cartridge Sanitary Housing, 316 SS

Specifications:

- Number Round: 3

- Nominal Cartridge Length: 40"

- Inlet/Outlet: 2" Sanitary Ferrules

- Drain: 1/2" TC

- Gauge Port W/ Vent: Vent 1" TC/ 1/2" TC

- Max Cartridge Diameter: 2-3/4"

- Gaskets: EP, Viton, Silicone (standard), Teflon Encap. Silicone or Teflon Encap Viton

- Mounting Legs: Yes

- Cartridge Seal 2-226/Tabs: Yes

- Max Operating Pressure: 150 PSI (10 bar)

- Max Operating Temperature: 230°F (110°F)

- Housing Material: 316 SS

CSH multi cartridge sanitary housings, available in 3, 6, 8, 12 and 21 round models with swing bolt closures are a proven design suited for high purity beverage, chemical and pharmaceutical applications. They are manufactured in 316L SS with a 25 RA internal finish. All CSH housings are standard with 226 style cartridge adaptors allowing a positive locking tab seal. This gives flexibility in one housing to use different cartridge lengths and maximize filter performance and cost. Designed with a removable tube sheet maximum cleaning and sanitary performance. CSH housings have not internal threaded parts that come in contact with the process fluid and are standard with food grade silicone gaskets. 1" sanitary gauge port tops with 1/2" sanitary vent and drain ferrules are standard features. Each vent and drain port is standard with solid cap, silicone gasket and clamp.
