CIH52C, 20" 5 Round Cartridge Industrial Housing Clamp Closure
Specifications:
- Number of Cartridges: 5
- Length of Cartridge: 19-1/2" to 20"
- Drain w/ plugs: 1/2"
- Vent w/ plugs: 1/4"
- Max Cartridge Diameter: 2-3/4"
- Mounting Tabs: Yes
- Universal Cartridge Seal: Yes
- Est. Ship Weight: 33 lbs
- Max Pressure: 150 psi (10 bar)
- Max Operating Temperature: 300°F (149°C)
Standard Design Features:
- Universal configuration. DOE and 2-222 fin or flat cartridge types
- Universal cups are 100% back welded to guarantee a no bypass seal
- Mounting tab kit: Included with every housing
- Bead blast finish
- Hold down knob: Stainless steel wing nut
- Operations and spare parts manual

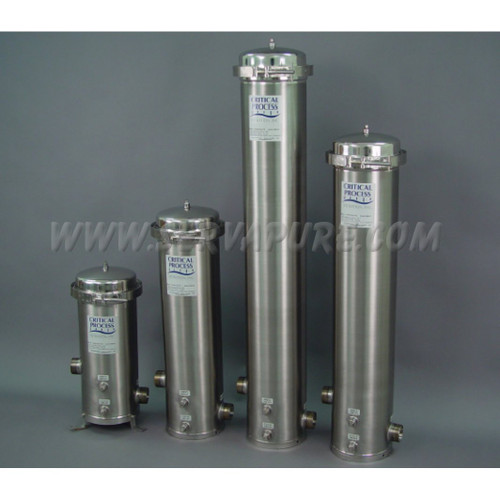

CIH multi cartridge V-band clamp closure housings are a proven design suited for commercial and industrial applications. Available in 304 or 316l SS. All CIH housings are designed with Universal cartridge cups, allowing you to use DOE style cartridges or 2-222 SOE cartridges with fin or flat end. This gives you one housings that can meet your nominal and absolute filter needs and provides quick cartridge change outs. Housing is standard with EP gasket and also offered in other materials and port sizes, allowing the CIH to meet a wide spectrum of applications.
