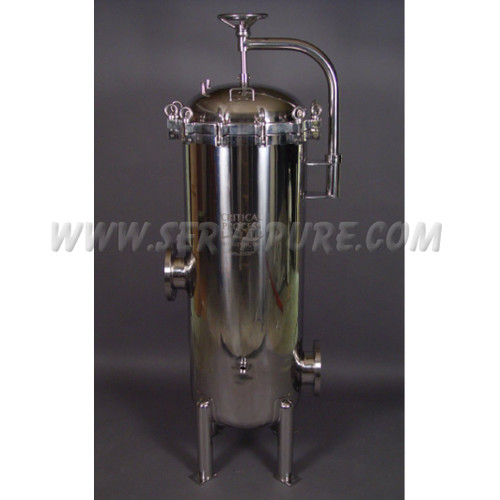

CIH524S, 40" 52 Round Cartridge Industrial Swing Bolt Closure, 1248 GPM
Specifications:
- Number of Cartridges: 52
- Length of Cartridge: 40"
- Drain w/ plugs: 1"
- Vent w/ plugs: 1/2"
- Max Cartridge Diameter: 2-3/4"
- Mounting Legs: Yes
- Lifting Davit: Yes
- Est. Ship Weight: 611 lbs
- Max Pressure: 150 psi (10 bar)
- Max Operating Temperature: 300°F (149°C)
Standard Design Features:
- Universal configuration. DOE and 2-222 fin or flat cartridge types
- All welded seams are argon welded for maximum corrosion resistance
- Standard surface finish is #320 machine polish and passivated Welds are ground smooth
- The CIH swing bolt housings are built to ASME and GMP standards
- All swing bolt hardware is stainless steel components
CIH multi cartridge swing bolt closure housings are a proven design suited for commercial and industrial applications. Available in 304 or 316l SS. All CIH housings are designed with Universal cartridge cups, allowing you to use DOE style cartridges or 2-222 SOE cartridges with fin or flat end.
