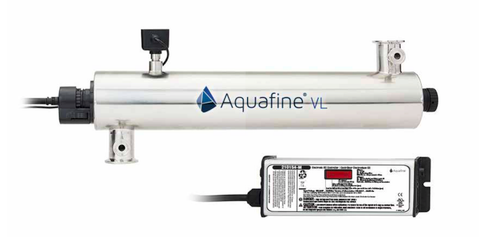

Aquafine VL 200 UV System, 11 GPM

Aquafine's VL series provides a compact design and economical ultraviolet water treatment for low-flow applications, such as laboratory and medical facility, pharmaceutical make-up processes, final electronic component rinsing and recirculation loops. The Aquafine VL Series is a superior product design over the previous model offering with all of the same core features, with a smaller footprint and more versatile design. The VL base models come standard with many additional options over the prior system offered.

Features (Base Model)
- Sampling Ports

- Audible Alarm

- Lamp Status Indicator

- Digital Display of Lamp Days Remaining

- High output lamp technology

- Controller 100 V to 240 V

- 316 L SS treatment chamber

- Viton Elastomers (USP Class VI)

- Ra32 Surface Finish

- Auxiliary Output (120 V)

- NIST UV intensity monitor

- Sanitary Tri-Clamp connection

- Disinfection Flow Rate @ 99% UVT : 12 GPM

- Number of Lamp (LPHO): 1

- Lamp Operating Power (W): 25W

- Total Operating Power (W): 35W

- Chamber Material: Type 316L SS

- Dimensions: 15" x 3.5"

- Interior Surface Finish: R32

- Inlet/Outlet Flange Size: 1"

- Inlet/Outlet Configurations: S-Shape

- IP Rating: 33

- Lamp Replacement Countdown in days: Yes

- Audible lamp replacement/fault alarm: Yes

- Audible low UVI alarm: Yes (Sensor Option Only)

- Aux Output (Lamp Out Alert): Yes

- Dimensions (Monitored) HxWxD: 8.8" x 3.2" x 2.5"

- Dimensions (Non-Monitored) HxWxD: 6.8" x 3.2" x 2.5"

- IP Rating: 54

- Standard Elastomers: Viton

- Min and Max Water Temperature Range: 36-104°F

- Max Operating Pressure: 125 PSI
